People want effective thermal solutions for their devices. They feel stressed when high temperatures cause failures. They search for quick answers to avoid downtime. This frustration leads them to wonder if passive heat sinks will solve overheating problems.
Passive heat sinks face a big challenge with size constraints. Larger profiles can be hard to fit. Designers may struggle to balance physical space and proper cooling. This can limit the practicality of passive heat sinks in many projects.
Many professionals still explore new methods. They hope to maximize cooling while using simpler hardware. Enthusiasts want to hear if passive solutions can outperform active ones without worrying about noise or energy use. Let us explore these questions.
What are passive heat sinks?

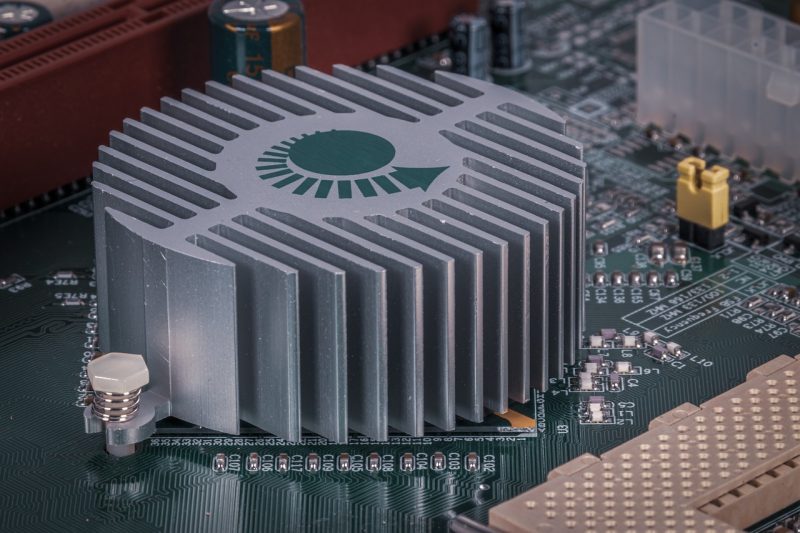

Passive heat sinks use natural convection for heat dissipation. Engineers and hobbyists want to reduce reliance on fans or pumps. They aim for quieter systems. This approach relies on open airflow and larger surface areas.
Passive heat sinks reduce temperature by allowing heat to leave through metal fins without forced airflow. They use materials like aluminum or copper. They do not include fans. Their shape and dimensions help release heat into the surrounding environment.
Extended Insights on Passive Heat Sinks
Passive heat sinks come in many shapes. Most are metallic blocks with fins. These fins increase surface area. This enlarged area lets heat spread out and dissipate faster. People like passive solutions because they eliminate moving parts. They also avoid noise from fans. Some professionals prefer this for reliability. Fewer mechanical components mean fewer failure points.
Passive solutions excel when devices have moderate heat loads. They show good performance in environments with lower power demands. Yet large amounts of heat can pose challenges. Designers must ensure enough airflow flows around the heat sink. Heat will not leave efficiently if air is stagnant. This might make the system run hotter than desired.
Types of Passive Heat Sink Materials
Many passive heat sinks use aluminum or copper. Aluminum is popular for its light weight. Copper has high thermal conductivity. Some passive designs use combinations of both. Each material offers a balance of cost, weight, and performance. The choice depends on the device’s thermal needs, size constraints, and budget.
| Material | Key Feature | Common Use Cases |
|---|---|---|
| Aluminum | Lightweight, affordable | Consumer electronics, LED lights |
| Copper | High thermal conductivity | High-performance or critical heat loads |
These materials shape how quickly heat travels away from hot components. Engineers run simulations to predict performance. They want to avoid hotspots. They also want to maintain safe component temperatures.
Practical Considerations
One important aspect is orientation. Passive fins perform best with proper arrangement. Vertical orientation often leads to better natural convection. Air can move upward through the fins more easily. Horizontal mounting might reduce airflow, especially in tight spaces. Design teams try to optimize these details to reach reliable cooling.
Another factor is environment. If ambient temperature is high, passive heat sinks struggle to release heat. Engineers might need extra ventilation or design the enclosure with vents. They may also consider advanced manufacturing methods. For example, extruded aluminum shapes or skived fins can increase surface area without sacrificing structural strength.
Passive heat sinks do not generate noise because there are no motors. This is a benefit for users who value silence. Fans can be annoying in offices or homes. Passive solutions are also more reliable. Fans wear out. Bearings degrade. Dust accumulates. Engineers who want fewer service calls may gravitate to fanless designs. But they must weigh the entire system’s thermal load.
Reliability is a major advantage, though it is not perfect. Passive heat sinks might need more surface area compared to active systems. Larger size can be a concern in compact devices. Passive solutions sometimes involve heavier, more expensive materials. They can also be trickier to install in portable electronics. So this approach demands a careful balance.
Do passive heat sinks work?
Passive solutions seem simple. They rely on nature, not fans. Some worry about whether they can handle high heat loads. Others value their noise-free benefit. People want to know if this approach truly keeps components cool.
Yes, passive heat sinks do work. They rely on natural airflow. They remove heat from components by transferring it to a larger surface area, then releasing it to the surrounding air. They can be effective when paired with moderate power loads and proper ventilation.
In-Depth Look at Passive Effectiveness
Passive effectiveness depends on various factors. Designers focus on thermal conductivity, heat sink design, and airflow patterns. They also check environmental conditions. For example, a small sealed box with no vents might trap heat. Even a well-designed passive heat sink may struggle. On the other hand, a well-ventilated enclosure can assist natural convection.
Heat Sink Geometry
The geometry of passive heat sinks matters. Fin spacing, fin thickness, and overall shape define how effectively air can move around them. Wider fin spacing might help air pass more easily. Too wide, and the heat sink may lose thermal density. The right geometry will maximize conduction from the component’s surface to the fins and convection from the fins to the air.
Application Range
Many real-life devices rely on passive heat sinks. LED lights often use them because fans would be impractical. Low-power CPUs in small systems may also include a passive heat sink. Industrial controllers sometimes skip fans because dust can clog active cooling. Passive methods can work well when power density is modest.
| Device Type | Typical Power Load | Passive Feasibility |
|---|---|---|
| LED Lighting | Low to moderate | Very feasible |
| Low-Power CPU | Low to moderate | Very feasible |
| High-End Graphics | High | Less feasible |
| Industrial Controllers | Moderate | Feasible with design |
These are general guidelines. Engineers often test prototypes extensively. They measure temperatures under worst-case conditions. If a device runs near the limit, they might add small fans or upgrade to an active solution.
Balancing Space and Performance
Passive cooling can demand more real estate. Large fin arrays or thick heat sinks might be necessary. Designers must consider the weight. They also consider mounting points. If the device experiences vibration, a heavy heat sink might loosen over time. Bolts, clamps, or thermal adhesives must be robust. Even though passive cooling can be reliable, missteps in mechanical design may cause failures.
Reliability and Maintenance
Passive solutions generally require less maintenance. There are no fans to replace. There are fewer dust accumulation points. However, dust can still collect on the fins. Over time, this buildup can hamper airflow. Occasional cleaning might be necessary, especially in dusty locations. Proactive maintenance ensures consistent performance.
Passive heat sinks work well in many scenarios. They are effective, quiet, and reliable. But they are not one-size-fits-all solutions. Thermal requirements, size constraints, and cost considerations should guide each decision.
What is another term for passive heat sink?
Some manufacturers and engineers refer to passive heat sinks using other labels. These names highlight the absence of moving parts. They also emphasize reliance on natural convection. People may encounter these synonyms in product datasheets.
“Fanless heat sink” is another common term. Some engineers also call it a “natural convection heat sink.” Both terms underscore that cooling is done without forced airflow.
Detailed Perspective on Terminology
Passive heat sinks are known by various names in different regions. Marketing teams may highlight “fanless” designs to show silence. Technical documents may use “natural convection heat sink” to describe their working principle. Each phrase captures the idea of heat dissipation without fans or pumps.
Fanless Heat Sink
“Fanless” is popular with consumers who want quiet. Audiophiles might say they need a “fanless” PC. The term “fanless” sets expectations for zero mechanical airflow. It hints at potential size tradeoffs. It also raises questions about higher temperatures under heavy loads.
Natural Convection Heat Sink
Some engineers prefer “natural convection heat sink.” This points to the driving mechanism of the design. Air movement is caused by temperature differences, not mechanical fans. The air around the fins warms and rises. Cooler air flows in to replace it. This cycle continues, removing heat.
| Term | Implication | Usage |
|---|---|---|
| Fanless Heat Sink | Emphasizes no fan presence | Consumer marketing |
| Natural Convection Heat Sink | Emphasizes convection method | Technical documentation |
These terms might appear in product lists or engineering resources. They are often interchangeable, but the emphasis differs. Some companies favor the fanless label for marketability. Others prefer the more technical phrase to highlight the physics involved.
Why Terminology Matters
Clear communication prevents confusion. When specifying components, engineers must confirm performance characteristics. They should check recommended wattage, dimensions, and mounting methods. A “fanless” label might mislead if the design still assumes some external airflow. So it is wise to confirm the actual thermal rating and reference tests.
Some device manufacturers brand these solutions differently. They use terms like “passive cooler” or “thermal radiator.” The concept remains the same. Heat is moved away from the source through conduction, then released to air via convection. Terminology can vary, but the physics do not change.
What are the two elements of a passive heating system?
A passive heating system often involves heat capture and heat distribution. This concept applies to building design and smaller electronic applications. Engineers and architects make use of these elements in their projects.
The two main elements are the heat collection surface and the conductive or convective path. The first gathers heat. The second transfers it to where it is needed, or away from components that must stay cool.
Exploring This Concept Further
In buildings, passive heating might involve large windows facing sunlight and thermal mass like concrete floors. In electronics, the “collection” could be the component interface, and the “distribution” could be the heat sink fins. Each approach uses conduction and convection. The big idea is to harness nature without using complex mechanical systems.
Heat Collection Surface
In electronics, the heat collection surface is typically the bottom of the heat sink in contact with the component. That interface must have low thermal resistance. Thermal pastes or pads help fill microscopic gaps. In buildings, large glass windows capture solar energy. In both scenarios, the collected energy must go somewhere.
Conductive or Convective Path
This second element ensures heat moves. In electronics, conduction moves heat from the component to the fins. Then convection releases it to the air. In architectural design, heat may travel through materials like concrete walls. Warm air then circulates through open spaces. These principles are the same. The goal is stable and efficient thermal regulation.
| Element | Electronics Example | Building Example |
|---|---|---|
| Heat Collection Surface | Heat sink base in contact with CPU | South-facing windows |
| Conductive/Convective Path | Fins for heat release | Floors and walls for heat storage |
Both elements work together. If one is weak, the system fails. A poorly designed contact surface may cause poor conduction. A lack of airflow might also hinder convection. Designers must balance these factors to maintain thermal comfort or cool components effectively.
Balancing the Two Elements
Passive methods can excel when properly scaled. In electronics, engineers measure power dissipation. They size the heat sink accordingly. They also account for maximum ambient temperatures. If the environment is too hot, passive solutions might not suffice. Similarly, in architectural design, climate, building orientation, and insulation levels can define success or failure.
What is the main obstacle to using passive heat sinks: size, power consumption, noise, air turbulence?
Passive heat sinks avoid noise because they lack fans. They do not consume significant power. Air turbulence is reduced without forced airflow. Yet one obstacle remains when we focus on practicality and performance.
Size is the main obstacle. Passive heat sinks need large surface areas to spread heat. This can create space constraints inside devices. Physical limitations often become the hardest barrier to overcome when designers choose passive cooling.
More Analysis on This Critical Obstacle
Many product engineers dream of a quiet, power-free cooling setup. They do not want to maintain or replace fans. They also do not want extra energy consumption. The biggest hurdle arises when they see how big a passive heat sink must be to manage high wattages. Some might attempt complex fin configurations, but volume can only shrink so much without sacrificing efficiency.
Why Size Matters
Larger heat sinks have more surface area. This is essential for effective convection. Thicker or wider fins can help, but there are practical limits. Devices often have strict spatial requirements. Some consumer electronics must remain slim or portable. Passive solutions can be tough to integrate in such products. This tension leads many engineers to pick small active fans instead.
Power Consumption
Passive heat sinks themselves do not draw power. They rely on ambient airflow. Active fans, on the other hand, require electricity. However, fan power usage is often small compared to the total device consumption. Most designers do not see it as a dealbreaker. They weigh noise and complexity more heavily than the slight energy cost.
| Factor | Passive Heat Sink Impact | Reality Check |
|---|---|---|
| Size | Often large, can be bulky | Main challenge |
| Power Consumption | Minimal for the heat sink itself | Not a concern, but fans have a small load |
| Noise | Zero, no moving parts | Advantage over fans |
| Air Turbulence | Minimal, relies on gentle airflow | Usually not an issue |
Engineers try to push heat sink innovation with better materials. Some use heat pipes or vapor chambers to move heat quickly to a larger fin area. Yet the fundamental principle remains. The more heat you dissipate, the bigger the total area you need for radiating it away. For high-power systems, you can end up with a massive metal block that might be cumbersome.
Potential Workarounds
Design teams sometimes pair passive heat sinks with advanced enclosures. They add vents or structural elements that aid airflow. They might also incorporate external device casing into the cooling pathway. For instance, metal device chassis can function as part of the heat spreader. That can reduce the need for a separate large heat sink. But geometry can still be restrictive.
Some high-performance applications use liquid cooling or hybrid solutions. They might avoid fans on the component, but have a radiator with fans at the chassis boundary. That is not purely passive. True passive designs remain appealing for their simplicity. Still, size remains an unavoidable consideration. This is especially critical in notebooks, tablets, or other compact electronics.
Considering Application-Specific Needs
In some cases, designers have no choice but to accept a larger enclosure. Industrial computers or specialized control equipment might allow more volume. They can accommodate big passive heat sinks. These systems can benefit from zero noise and minimal mechanical failures. This is often a good tradeoff in harsh or remote environments where maintenance is difficult.
In consumer products, size constraints are common. Laptops usually require active fans. Desktops may use a combination. Small form factor devices with moderate power might manage with a well-designed passive solution. Thermal engineers do thorough calculations or rely on software simulations to find the best approach.
Practical Tips
Professionals who want to use passive cooling should plan early. They should allocate enough space in the design. They should confirm that the ambient temperature remains stable. They should test the system under worst-case loads. Overheating can reduce component lifespan or cause safety issues. Thorough analysis is crucial before finalizing a passive approach.
It is also wise to consider long-term reliability. Passive solutions might accumulate dust, but do not rely on fans. Fans can fail or make noise over time. Balancing these factors is part of the design challenge. Some industries prefer the reliability of passive systems if they have enough space to accommodate them.
Conclusion
Passive heat sinks bring silence and reliability. Yet they need more space, which is often the real barrier in modern device design.
