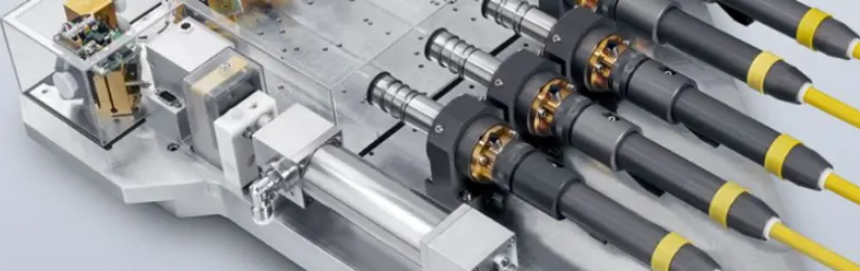

Laser Cooling Applications
System level thermal management plays a crucial role in the temperature operation of laser equipment.The schemes of air-cooled and liquid cold plates are commonly used.
Which Important Laser Components Require Thermal Management?
A laser diode (LD) is one of the core components of a laser, which generates light by injecting current. During operation, a certain amount of current flows through the diode, which leads to the following issues related to thermal management.
Heat generation: In laser diodes, heat is generated when current passes through semiconductor materials. This is due to the energy released when electrons and holes recombine, causing the semiconductor material to heat up. If this heat cannot be effectively removed, the diode’s temperature will increase, which may lead to performance degradation and even damage.
Temperature sensitivity: The performance of laser diodes is closely related to temperature. An increase in temperature may cause changes in the spectral characteristics of the laser, wavelength drift, and frequency expansion, thereby affecting the stability and reliability of the laser. To maintain the precise working conditions of the laser, it is necessary to control its temperature effectively.
The Importance of Thermal Management For The Operation of Laser Equipment
Optical performance stability: The optical performance of laser crystals is closely related to temperature. A temperature change may cause changes in the crystal’s optical properties, such as changes in refractive index, leading to frequency drift of the laser. Controlling the temperature of the laser crystal is necessary to maintain the precise wavelength and frequency of the laser.
Thermo optical effect: When a laser passes through a crystal, it may produce a thermal optical effect caused by photon absorption, leading to local heating of the crystal. This kind of heating may cause a temperature gradient inside the crystal, affecting the laser’s propagation path and phase. Effective thermal management can alleviate the negative impact of thermal and optical effects on laser beams.
Thermal expansion and stress: When a laser crystal is subjected to thermal expansion, it may cause stress inside the crystal, affecting the flatness and shape of the optical surface. This stress may cause optical distortion and performance degradation. By controlling the temperature, problems caused by thermal expansion can be alleviated.
Air Cooling System Is Used For Laser Pump Source.
An air cooling system is a standard thermal management solution for laser systems. It dissipates the heat generated by the laser and its surrounding components into the surrounding environment through a fan. The air-cooled system increases the surface area and improves heat dissipation efficiency through heat dissipation structures such as fins and heat sinks. The fan introduces the surrounding air through convection, cooling the components with high heat and effectively controlling the working temperature of the laser. One of the advantages of an air-cooled system is its simplicity and ease of operation, without involving complex pipelines or cooling media. It is usually more economical, easy to maintain, and suitable for some small to medium-power laser systems.
However, for high-power or long-term operating laser systems, the cooling capacity of the air-cooled system may be limited. In these cases, a more powerful liquid cooling system should be considered to ensure sufficient heat dissipation capacity and maintain the performance and lifespan of the laser. When selecting an air-cooled system, it is necessary to comprehensively consider equipment power, a skived heat sink with a large radiator, area environmental conditions, and performance requirements to achieve the best thermal management effect.
Liquid Cooling Solution Is Used For Laser Pump Source.
Liquid cold plate solution is an advanced cooling technology for laser equipment, which effectively manages the heat generated by the laser through circulating cooling liquid. During the laser operation, the liquid cooling system introduces the cooling fluid into the vicinity of the laser through pipelines, absorbs the heat generated by the laser, and then transfers the heated fluid to the cooling equipment to complete the heat dissipation cycle.
It helps to accurately control the operating temperature of the laser and surrounding optical components. This is crucial for maintaining the optical performance of the laser system, as small temperature changes can lead to issues such as wavelength drift and phase change. The liquid cooling system helps to ensure the quality and stability of the laser output beam by providing precise temperature control. In addition, the liquid cooling scheme can reduce the thermal stress on the laser and optical components and improve the anti-interference ability of the equipment. This is particularly important for long-term high-power laser systems, as it can prolong equipment life and reduce maintenance costs.
Cooling Solution Is Used For Fiber Optic Cables.
Fiber optic cables play a crucial transmission role in laser equipment, and their thermal management is vital. In fiber optic transmission, a certain amount of heat is generated due to the attenuation of optical signals and the absorption of fiber materials. In high-power laser systems, this heat may cause an increase in the temperature of the fiber optic cable. An increase in temperature may cause changes in the optical properties of fiber optic materials, affecting the fiber’s transmission performance and loss characteristics. Thermal management of optical fibers is necessary to maintain the stability of optical performance. The thermal expansion coefficient of fiber optic materials is relatively high, and an increase in temperature may cause changes in the size of the fiber optic cable. This thermal expansion may cause stretching or compression of optical fibers, affecting the transmission stability of optical signals.
To effectively manage the temperature of the fiber optic cable, cooling measures can be taken by pressing the fiber optic cable onto the surface of a heat sink or liquid-cooled plate with grooves. The grooves are usually 0.5mm and 0.75mm U-shaped grooves, and the corresponding fiber optic cable diameter is 350 microns or 550 microns. This helps to prevent the fiber optic cable from overheating and ensure its long-term stable operation.
Fiber Thermal Analysis Design And Optimization
They are crucial for fiber optic heat sinks. Thermal analysis can identify heat dissipation requirements, locate hotspots, and provide a foundation for design. Comparative optimization helps select the most suitable heat sink type, material, and structure, improve heat dissipation efficiency, and ensure the stable operation of optical fibers in high-power laser systems. This comprehensive design process is crucial for the long-term operation of fiber optic equipment in terms of system performance, lifespan, and reliability.
