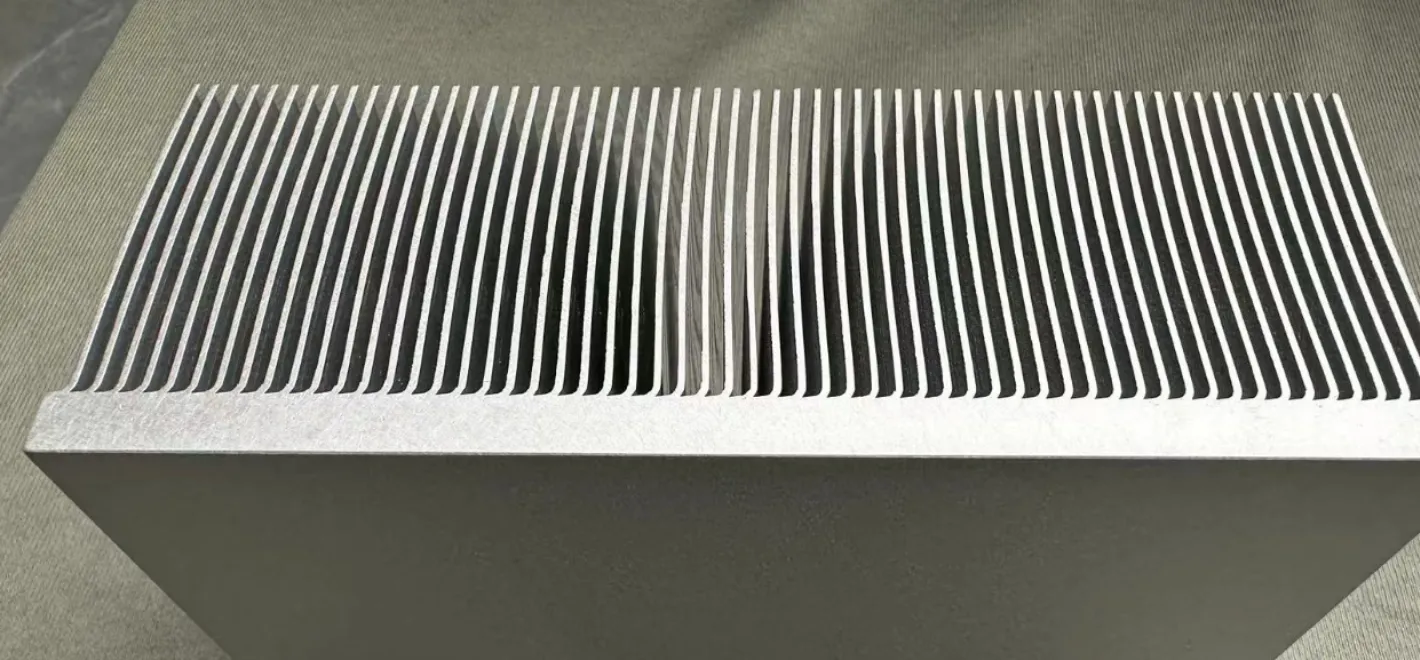

FAQs For Heat Sinks

Our sales engineers and customer engineers have doubts and fundamental questions about some concepts and designs of heat sink. Through the content of this article, you can refer to many technical parameters in the design process of heat sinks.

Frequently Asked Questions

You can click on the section of your interests:

1. What's a heat sink?

A heat sink is a device designed to transfer heat from an object. It works based on the principles of heat transfer. When attached to a heat – generating component, heat conducts into the heat sink. The heat sink usually has a structure with a large surface area, like fins. There are several ways for heat dissipation. Natural convection occurs as the surrounding air takes away heat due to the temperature difference. Forced convection is achieved by using a fan to enhance air flow. Additionally, a small amount of heat is radiated. Heat sinks are widely used in many fields such as in electronic devices to cool IGBTs and in automotive engines to prevent overheating.

2. What is the function of a heat sink?

The main function of a heat sink is to dissipate heat. In various systems, such as electronic devices and engines, heat is generated during operation. If this heat is not removed, it can cause damage or reduce the efficiency of the device. The heat sink absorbs the heat from the heat – generating source through conduction. Then, it transfers the heat to the surrounding environment by convection (either natural or forced) and radiation. By doing so, it helps to maintain the temperature of the component within a safe operating range. This ensures the proper functioning and extends the lifespan of the device or system.

3. What are the general processes for producing heat sinks?

The production process of heat sinks is divided into profile technology, die-casting technology, solder paste welding technology, and Skived fin technology. These processes are determined based on the customer’s structural requirements and heat dissipation power density. The advantages and disadvantages of each process are very obvious, and only the suitable process is the cost-effective solution.

4. What are the materials of general heat sinks?

The general materials include ADC12, aluminum3003, aluminum6061, aluminum 6063, aluminum 1050/1060, C1100, ceramics, and graphite.

5. How to calculate the heat dissipation efficiency of a heat sink?

The efficiency of a heat sink can be calculated in the following ways. Using the heat conduction formula, such as Fourier’s Law, to calculate the theoretical heat flow. At the same time, measure the temperature difference and flow rate of the fluid at the inlet and outlet of the heat sink, and calculate the actual heat dissipation according to the formula Q=cxmxT. The efficiency is equal to the ratio of the actual heat dissipation to the theoretical heat flow. The Newton’s Law of Cooling can also be considered to calculate the convective heat transfer. Combined with the concept of thermal resistance, analyzing the total thermal resistance and the ideal thermal resistance can indirectly reflect the efficiency. In addition, through experimental measurement combined with empirical formulas, and drawing the relationship curve between the heat dissipation power and the influencing factors under different working conditions to estimate the efficiency.

6. What parameters should be considered when designing a heat sink?

Firstly, the heat dissipation power should be considered to determine the amount of heat that needs to be dissipated. The parameters of the material are crucial, including the thermal conductivity of the material. Different materials such as copper and aluminum have different thermal conductivities. The size of the radiator also needs to be taken into account, such as the surface area, volume, fin height and thickness, as these affect the heat exchange area with the environment. Furthermore, environmental parameters such as the ambient temperature and air flow rate are important. Finally, for some special applications, factors such as the weight, installation method and cost of the radiator need to be considered as limiting factors.

7. Factors affecting the heat dissipation efficiency of heat sinks.

The factors that affect the heat dissipation efficiency of a radiator mainly include the following aspects. Firstly, the material. For example, copper has better thermal conductivity than aluminum, which is more conducive to heat conduction. Secondly, the surface area of the radiator. The larger the surface area, it contacts with the air, and the heat dissipates faster. Thirdly, the air flow speed. A faster flow can take away more heat. Fourthly, the design of the heat dissipation fins. Reasonable spacing and height can optimize heat dissipation. Fifthly, the working environment temperature. A high ambient temperature will reduce the temperature difference between the radiator and the outside world, affecting the heat dissipation efficiency.

8. How to improve the efficiency of heat sinks?

To improve the heat dissipation efficiency of the heat sink, the following methods can be considered. Firstly, in terms of materials, choose those with high thermal conductivity such as copper and graphene. In terms of design, increase the surface area of the radiator, for example, by setting more and more reasonable heat dissipation fins. Optimize the air flow, use fans to make the air flow through the radiator quickly to take away the heat. The heat pipe technology can also be adopted, using the phase change of the working medium in the heat pipe to transfer heat efficiently. Furthermore, improve the contact between the radiator and the heat source, and use thermal conductive silicone grease, etc. to reduce the contact thermal resistance and ensure that the heat can be quickly transferred from the heat source to the radiator for dissipation.

9. Solution for Heat Sink of High Power Equipment.

There are multiple design schemes for high – power heat sink. In terms of air cooling, a combination of high – speed fans and dense fins can be used. The strong airflow from the fans and the large contact area of the fins are utilized for heat dissipation, which is suitable for computer servers and the like. In the liquid cooling solution, the coolant circulates inside the radiator, which can efficiently take away the heat. This is commonly used in high – end gaming computers. Heat pipe radiators use the phase change of the working medium inside the heat pipes for heat transfer, and then cooperate with the heat dissipation fins to achieve good heat dissipation effects. There is also phase – change cooling, which uses the phase change of special substances to absorb heat for heat removal, suitable for extreme high – power scenarios.

10. Key points of heat sink design for heat sinks.

The key points in designing a radiator are as follows. In terms of materials, it is necessary to select materials with good thermal conductivity, such as copper and aluminum, to ensure the rapid conduction of heat. In terms of structure, a large enough heat dissipation surface area needs to be designed. For example, increasing the number and reasonable layout of fins to increase the contact area with the air. The air flow should also be considered, and the air duct should be reasonably designed or a fan should be added to enhance the air convection. The control of thermal resistance is also crucial, and the thermal resistance in all aspects of the radiator should be minimized. At the same time, according to the usage scenario of the radiator, factors such as cost, volume, and weight should be taken into account to achieve a balance between heat dissipation performance and other conditions.
