I have worked with many types of battery systems over the years. I remember the first time I encountered a battery thermal management problem. I had underestimated the heat inside a battery pack, which caused an unexpected shutdown during a demonstration. That incident led me to dive deeper into cooling technologies, especially the differences between liquid-cooled vs air-cooled battery plates. I have found that these two methods have different strengths, challenges, and practical considerations.
Introduction to Battery Cooling Systems
I have always believed that proper thermal management is crucial for any battery-powered device. I remember one time when a friend asked me why her electric scooter kept shutting down after a few blocks. I explained that the battery cells were overheating because of poor airflow in her scooter’s design. This experience motivated me to focus on battery cooling techniques.
Battery cooling systems exist to keep the cells within safe temperature ranges. If a battery gets too hot, it can lose capacity, age prematurely, or in extreme cases, catch fire. On the other hand, if a battery is too cold, performance can drop significantly, and charging becomes less efficient. Managing temperature is a balancing act. Designers must consider factors like usage patterns, external climate, and cost constraints.
My background in manufacturing has led me to see how engineers incorporate various cooling solutions. Some rely on airflow channels to remove heat, while others use specialized fluids that flow through channels to pull heat away from the cells. Both methods help maintain stable performance, reduce degradation, and extend battery life. Yet, the details matter. Liquid-cooling systems usually involve more components, such as pumps, coolant channels, and hoses. Air-cooling systems rely on fans or natural convection and more open layouts.
Before choosing one over the other, I like to compare factors like cooling efficiency, cost, ease of maintenance, and the overall environment where the battery will operate. Each scenario is unique. For instance, a stationary energy storage system often has a different set of conditions than an electric vehicle. By understanding battery cooling systems, we can decide what design is best for specific needs.
What is the difference between liquid-cooled vs air-cooled?
When I visited an electronics manufacturing plant a few years ago, I saw two lines of battery packs. One line used a complex network of tubes for circulating fluid, while the other used fans to blow air across the battery cells. That was the moment I truly understood how liquid-cooled and air-cooled systems differ in practice.
Liquid-cooled systems use a circulating fluid—often a water-glycol mixture—to absorb and move heat away from the battery cells. Air-cooled systems rely on airflow to remove heat. Air can be moved by fans or depend on natural convection. The fundamental difference is the cooling medium: fluid versus air.
I have noticed that fluid-based cooling has a higher heat capacity, meaning it can carry more heat away from the cells at once. Air cooling is simpler because it does not require extra pumps or fluid handling. That distinction affects how engineers design their battery packs. Liquid cooling might allow tighter spacing of cells since heat is pulled away efficiently. Air cooling might need more space to let airflow circulate.
Both approaches aim to keep temperatures in check, but their methods differ significantly. Choosing one often depends on the performance requirements, desired packaging, and the climate in which the battery will operate.

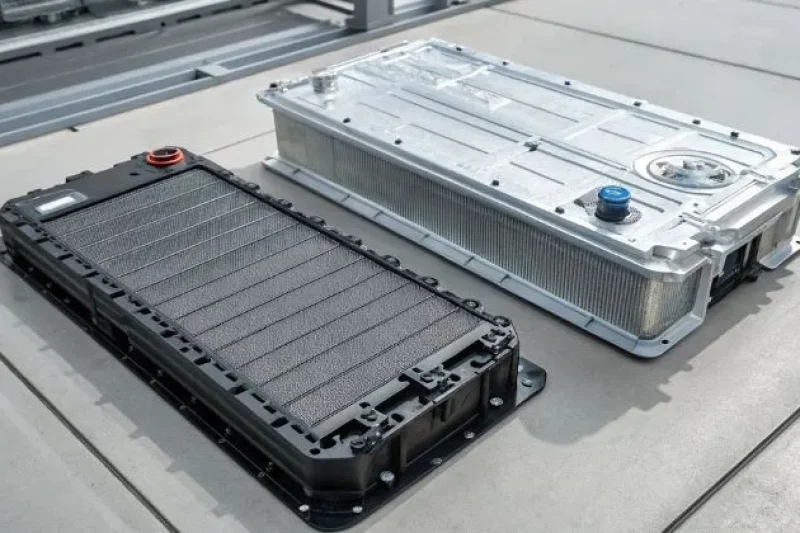

What Are Liquid-Cooled and Air-Cooled Battery Plates?
Battery plates refer to the structural components that hold and support battery cells. These plates help ensure even temperature distribution, protect cells from mechanical damage, and provide contact surfaces for cooling. In my factory, I have seen how we embed either fluid channels or air ducts into these plates.
Liquid-cooled plates contain internal channels. A coolant flows through these channels, drawing heat from the cells and dissipating it through a heat exchanger. Air-cooled plates might feature fins or other features to maximize the surface area. This design allows more air to flow over the plate and pull heat away from the cells.
Below is a simple comparison table that shows the key components of each plate type:
| Features | Liquid-Cooled Plates | Air-Cooled Plates |
|---|---|---|
| Cooling Medium | Coolant (water-glycol or similar) | Air |
| Primary Heat Transfer Method | Convection through fluid in enclosed channels | Forced or natural convection over fins or channels |
| Typical Plate Construction | Channels or tubes embedded in metal (aluminum or copper) | Fins, slots, or ducts to increase airflow |
| Complexity | Higher due to pumps, hoses, and coolant system | Lower, often just fans or vents |
| Common Applications | Electric vehicles, industrial battery packs needing high heat dissipation | Consumer electronics, moderate power systems, or large housings |
I have found that liquid-cooled plates usually win when dealing with high power densities. On the other hand, air-cooled plates are more straightforward for smaller or lower power applications. Neither is universally better, but each has its place.
How does cooling efficiency vary between liquid-cooled and air-cooled plates?
In my earlier years, I set up a small test bench to compare how fast air-cooling and liquid-cooling could draw heat away from a set of lithium-ion cells. I used thermal sensors on each cell and monitored the temperature over time during high-discharge cycles. I learned that liquid-cooled systems generally removed heat faster and more consistently.
Cooling efficiency depends on how quickly the heat can be moved away from the battery. Liquid cooling often has higher thermal conductivity and specific heat capacity, so it can absorb and transport heat more effectively. This can be particularly vital in high-power applications, like electric vehicles or large-scale energy storage.
Air cooling, on the other hand, tends to be less effective when the power levels are high or the ambient temperature is high. It also can become noisy if large fans are used, and airflow paths must be carefully designed. Yet, air cooling is perfectly sufficient in applications where power demands and heat generation are moderate.
I usually tell people that if they need very stable temperatures, especially when pushing batteries to their limits, liquid cooling stands out. But if budget and simplicity are key and the power levels are not extreme, air cooling can be a reasonable option.
Factors Influencing Cooling Efficiency
- Battery Layout: Denser cell packing generates more heat, favoring liquid cooling.
- Ambient Conditions: Hotter environments reduce air-cooling effectiveness.
- System Constraints: Spatial or cost limitations might restrict complex piping needed for liquid cooling.
- Performance Goals: Applications that demand high discharge rates usually need more robust cooling solutions.
In my opinion, cooling efficiency is not just about raw numbers. It is also about how consistently the system can keep the entire battery pack within a narrow temperature range. Liquids tend to be better at distributing heat evenly, but that advantage can come at a higher overall system cost.
Are air-cooled batteries better than liquid-cooled for specific applications?
I once helped a colleague optimize an outdoor lighting battery system for a remote area. The requirement was a robust solution with minimal maintenance. We chose an air-cooled design because the battery power demand was relatively low, and the environment was stable. This choice allowed for a simple setup without the worry of coolant leaks or pump failures.
That experience taught me that “better” always depends on the situation. Low power systems or smaller battery packs might not justify the complexity of liquid cooling. In these cases, a well-ventilated enclosure and perhaps a fan can keep temperatures in check. Air cooling can be especially convenient in portable or lightweight devices. It is also good for environments where adding liquid lines could introduce reliability issues.
Yet, for electric vehicles or specialized industrial systems, liquid cooling is often the go-to method. The higher power demands generate more heat, making liquid cooling more appealing. If the system must handle repeated cycles and sustain high performance, air cooling might struggle to keep temperatures uniform.
So, I do not see one method as definitively “better” across the board. Instead, I weigh the pros and cons of each method and consider the specific conditions and requirements.
Cost Analysis: Which is more cost-effective, liquid or air cooling?
I remember negotiating with a supplier for a new batch of liquid-cooled plates. The costs included not just the plates themselves, but also pumps, reservoirs, tubing, coolant fluid, and sensors. Air-cooled systems, by comparison, often needed fewer parts. A set of fans, vents, and some carefully designed enclosures were usually enough.
When I calculate the total cost, I look at:
- Initial Manufacturing Costs: Liquid-cooled systems require precise machining to create channels, plus sealing solutions and more complex assembly steps. Air-cooled plates can be simpler to make, especially if they only need fins or simple extrusions.
- Component Costs: For liquid cooling, pumps, pipes, and coolant add extra expense. Air cooling relies on fans, which are cheaper, but high-quality fans also add some cost.
- Maintenance Expenses: Over time, liquid systems might develop leaks or require coolant changes. Air systems might require fan replacements or frequent cleaning of dust filters.
- Lifetime Operational Costs: Liquid systems might extend battery life by keeping temperatures consistently lower, thus offsetting some initial cost with performance gains. Air cooling might mean simpler maintenance but potentially higher cell temperatures.
In my experience, if your system needs high-performance cooling and you are dealing with large battery packs, the extra cost of liquid cooling can be justified. If you only need moderate cooling, air-cooling can be more cost-effective. The overall equation will vary, so I always recommend a thorough cost-benefit analysis.
Installation and Maintenance: Which cooling system is easier to install and maintain?
I recall a time when I was still new in the industry and tried to install a liquid cooling loop on my own. I spilled coolant, had trouble sealing the tubes, and discovered a leak a week later. That memory still reminds me to plan carefully when dealing with liquid-cooled systems.
Air-cooled designs are straightforward: you mount the fan, ensure adequate ventilation, and confirm that the airflow passes over the battery cells. Maintenance might involve cleaning dust filters or replacing fans after a few years. There are no liquids to drain or pumps to worry about.
Liquid-cooled systems demand more careful assembly. You need to connect hoses without leaks, fill and bleed the cooling loop, and ensure that the pump is working properly. If a leak occurs, it can damage electronics. Repairs can be more time-consuming and require specialized labor.
Yet, I have noticed that many large-scale systems come with robust cooling modules. These modules are tested and sealed at the factory, making installation easier than it once was. Maintenance schedules can be set based on fluid replacement intervals. So, with the right design and quality components, liquid cooling is not necessarily difficult, but it is typically more involved than air cooling.
Is air cooling better than liquid cooling for BESS (Battery Energy Storage Systems)?
Battery Energy Storage Systems (BESS) can vary in size from small containers to entire buildings full of battery racks. I was once involved in a project where we needed to set up a BESS in a region that had drastic temperature swings. We decided on a liquid-cooled approach for part of the system, while another part was air-cooled. That hybrid arrangement gave us the chance to compare both.
In large-scale BESS, controlling the internal temperature can be crucial for operational stability. Liquid cooling can maintain more even temperatures and manage high-power demands, especially if the system charges and discharges rapidly. This can be very helpful for frequency regulation or peak shaving applications. Yet, these benefits come with higher upfront costs and more complex maintenance routines.
Air cooling might suffice for smaller BESS units or those operating in stable climates. It can be appealing if the system is in a location with good airflow and moderate temperatures. However, if the environment is extremely hot or if you need to draw high power frequently, the batteries might heat up beyond optimal limits with air cooling.
From my experience, the decision depends on the specific application requirements. If I anticipate heavy usage and challenging climates, I lean toward liquid cooling. If cost or simplicity is key and the load is moderate, air cooling can be a good option.
Table: BESS Cooling Considerations
| Factor | Liquid Cooling Pros | Liquid Cooling Cons | Air Cooling Pros | Air Cooling Cons |
|---|---|---|---|---|
| System Size | Handles large capacities well | More components, complex setup | Less complex for moderate systems | May not scale as well for massive power loads |
| Climate | Effective in extreme heat, keeps uniform temps | Risk of coolant freezing in very cold climates | No liquid to freeze | Less efficient in very hot climates |
| Maintenance | Sealed systems can be reliable if well designed | More parts to maintain, risk of leaks | Simple replacement of fans/filters | May need frequent dust cleaning |
| Performance | Offers stable temperature control | Higher upfront investment | Lower cost if demands are smaller | Temp fluctuations can be larger |
This table reflects how I typically approach these decisions when designing or advising on BESS projects.
Environmental Adaptability: How do liquid and air cooling perform in different climates?
I have traveled to various parts of the world to consult on battery installations. In very hot and humid places, air cooling sometimes struggles because the air is already warm and holds a lot of moisture. Liquid cooling tends to perform better there because coolant temperatures can be managed by external radiators.
In cold climates, liquid cooling can face challenges if the coolant is susceptible to freezing. You might need special antifreeze solutions. Air cooling might be simpler in sub-zero conditions, but you must ensure that fans do not freeze or get clogged by snow. I once had a client in a remote northern region who had to install special air intake filters to prevent ice buildup.
Altitude also matters. Higher altitudes have thinner air, which reduces the effectiveness of air cooling. Liquid cooling, on the other hand, is less impacted by air density. That is why some electric vehicles operating in mountainous regions rely on liquid-cooled battery packs for reliable performance.
I see adaptability as a question of how well a system can handle extremes. Liquid systems are adjustable by changing pump speeds or coolant mixtures. Air systems rely on ambient conditions and might need more robust fans or venting solutions. The environment dictates the stress placed on the cooling mechanism.
Innovations and Future Trends in Battery Cooling?
Battery technology evolves fast. I watch new cooling innovations closely because they can disrupt established practices. For instance, I have seen some manufacturers experiment with phase-change materials that absorb heat as they change from solid to liquid. This passive cooling approach can supplement either liquid or air cooling.
Another promising trend is the integration of advanced thermal interface materials. These materials provide better contact between battery cells and cooling plates. This improvement can make air cooling more effective, bridging some of the gap in performance compared to liquid cooling. At Kenfatech, we are exploring ways to embed microchannels in our liquid-cooled plates to reduce weight and increase heat transfer.
I have also come across hybrid solutions that combine liquid and air cooling in one system. For instance, there might be an air-cooling path for regular operation and a liquid loop that kicks in during peak loads. This approach offers a balance of efficiency and cost savings.
There is also growing interest in direct immersion cooling, where cells or modules are partially immersed in a dielectric fluid. This fluid draws heat away more directly. Immersion cooling is still not widespread due to complexity and cost, but I believe it has potential for high-power, data center-like energy storage applications.
I see these innovations pushing the industry to rethink how we balance performance, safety, cost, and environmental impact. As higher energy densities become the norm in batteries, advanced cooling designs become a necessity rather than a luxury.
Conclusion
The choice between liquid-cooled vs air-cooled battery plates depends on many factors. Each solution can shine when matched with the right application and environment. I believe that understanding these details helps us build safer and more efficient battery systems.
