Case Studies-Copper tube process liquid cold plate with 4 pass tunnels
We will use professional thermal analysis software to design the optimal scheme for customers, then confirm the feasibility of the theory with engineers, and then start to make samples for testing
Copper tube process liquid cold plate with 4 pass tunnels
Project Details
Customer:
Automatic control manufacturer
Application:
Automatic control industry
Technology:
Copper tube liquid cold plates
Thermal power type:
IGBT cooling
Location:
Company patented product
Intruduction
Electronic components in special environments need a heat dissipation solution with low thermal resistance. Usually, this kind of copper tube or stainless steel tube is used as the channel of liquid fluid. The way of cooperation makes the copper tube and the aluminum plate closely linked, and there is no thermal resistance medium and gap in the middle. The epoxy resin is cured at room temperature, or the epoxy resin is cured quickly by heating, and then CNC processed. This high-efficiency heat dissipation method Water cooling plates are often used for 5G and Inverter Drive
The Thermal Solution
Designed requirements
Based on our more than 10 years of production experience, many customers need some standard water-cooled plates, which can reduce the production time of products. Therefore, our engineers spent some time to sort out and study, and obtained the specifications of heating chip modules used by general customers, so as to design the corresponding water-cooled plates. Customers just need to follow their own needs, approximate power, Basically you can choose our standard products. Generally speaking, we can provide samples within a week. At the same time, if you need to process the mounting holes on it, we can also provide services
PRODUCT SPECIFICATIONS
Plates Details: Extruded Aluminum 6063-T5
Tube Material: Copper 1100 9.52mm ODx1.24mm wall
Standard Finish: Chromate Coating
Epoxy :Aluminum Filled –High thermal Conductivity
Measurement : 127*152*15.2mm
127*302*15.2mm (the X length can be 100-1000mm)
The liquid cold plate sizes
After the software is run, the air volume pressure is obtained, so as to determine a reference value for the fan resistance impedance in the later period
Also, after the software is run, the speed of the air volume is obtained, so as to determine a reference value for the later fan air volume

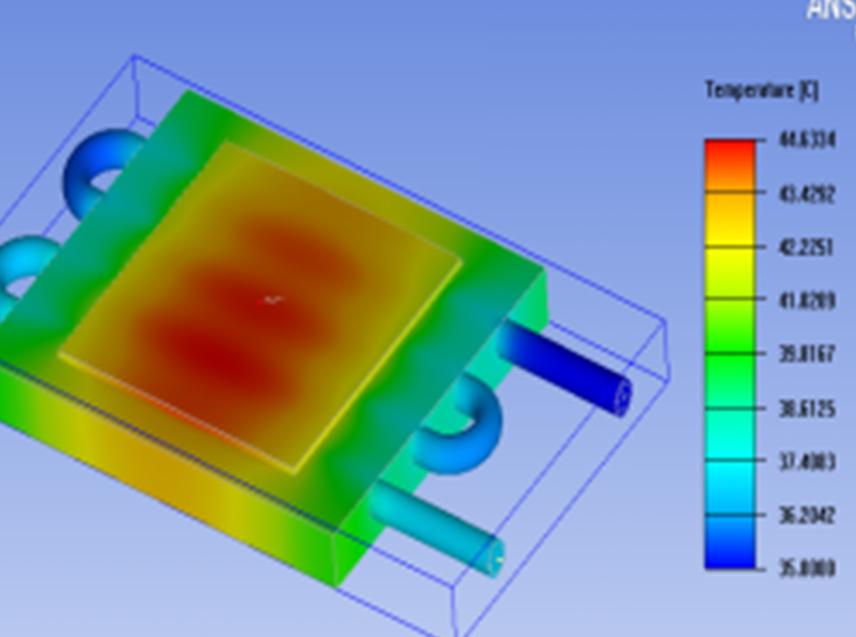

After calculation, the temperature distribution diagram of the heat source within the range of the set module is obtained, and then the engineer can optimize it.
Results
Thermal power @ 500W
The ambient temperature is 35 °C
The flow of water 4LPM
Thermal resistance:(44.5-35)/500=0.019
