600W LED heat sink with heat pipes thermal solution
We will use professional thermal analysis software to design the optimal scheme for customers, then confirm the feasibility of the theory with engineers, and then start to make samples for testing
Project Details
Customer:
Lighting manufacturer
Application:
Led lighting industry
Technology:
Soldering process with heat pipes
Thermal power type:
Led cooling
Location:
UK
Intruduction
Our engineers analyzed the customer's demand when they got it. Since the power is 600W, forced convection must be adopted, and two suitable fans should be selected. Since the customer's space size is relatively small, the fans must have high efficiency and large air volume. At the same time, the heating source is the COB LED where the heat is concentrated, so the heat pipe with high efficiency must be used for local heat distribution and diffusion and heat removal.
The Thermal Solution
Designed requirements
LED Power: COB 600W
The environment temperature 35 ℃
Heat sink
AL 1100 base
AL 1100 fins
Al Cover
Diameter of 8mm heat pipe 12pcs
Heat sink size: 250*250*75mm
Fan: 120*120*38mm 2PCS
Simplified model and heat source in the Pro/E
Parameter setting and meshing are in the software
After the software is run, the air volume pressure is obtained, so as to determine a reference value for the fan resistance impedance in the later period
Also, after the software is run, the speed of the air volume is obtained, so as to determine a reference value for the later fan air volume
Also, after the software is run, the speed of the air volume is obtained, so as to determine a reference value for the later fan air volume

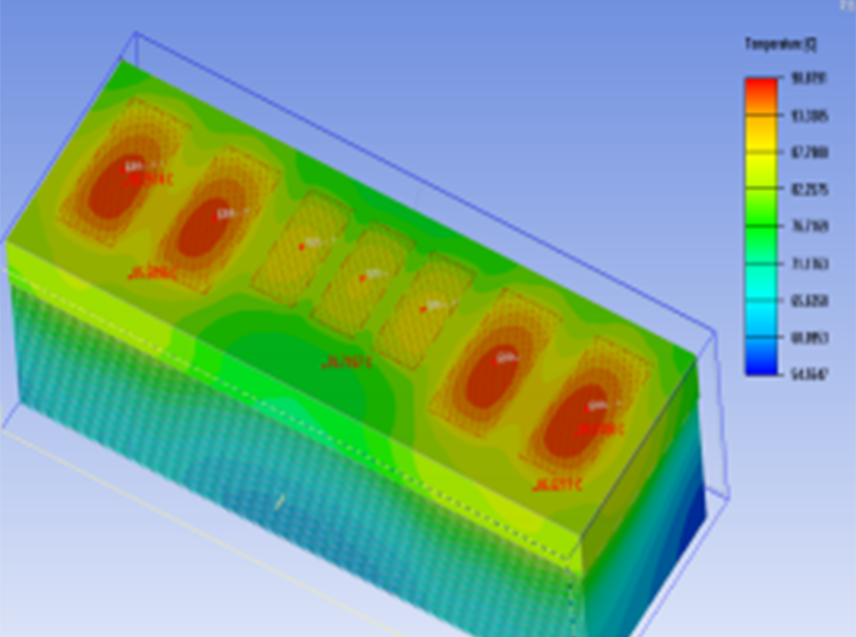

After calculation, the temperature distribution diagram of the heat source within the range of the set module is obtained, and then the engineer can optimize it.
Results
Our engineers use detailed data and accurate meshing CFD software for calculation. By constantly adjusting the data module, heat pipe position, and thickness and spacing of heat sinks fins, we finally designed a heat sink scheme meeting the requirements for the customer. Meanwhile, we have made sample testing and mass production. However, the heat pipe heat sink should be noted that in extreme environment, the liquid inside the heat pipe is easy to freeze and then expand. The location and gravity direction of the main heat pipe are required
